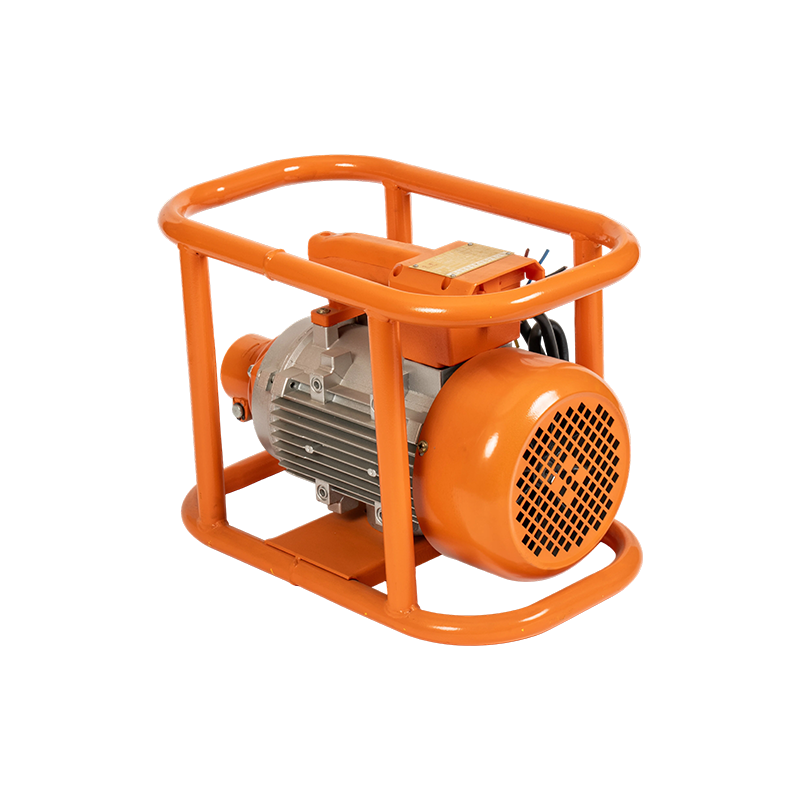

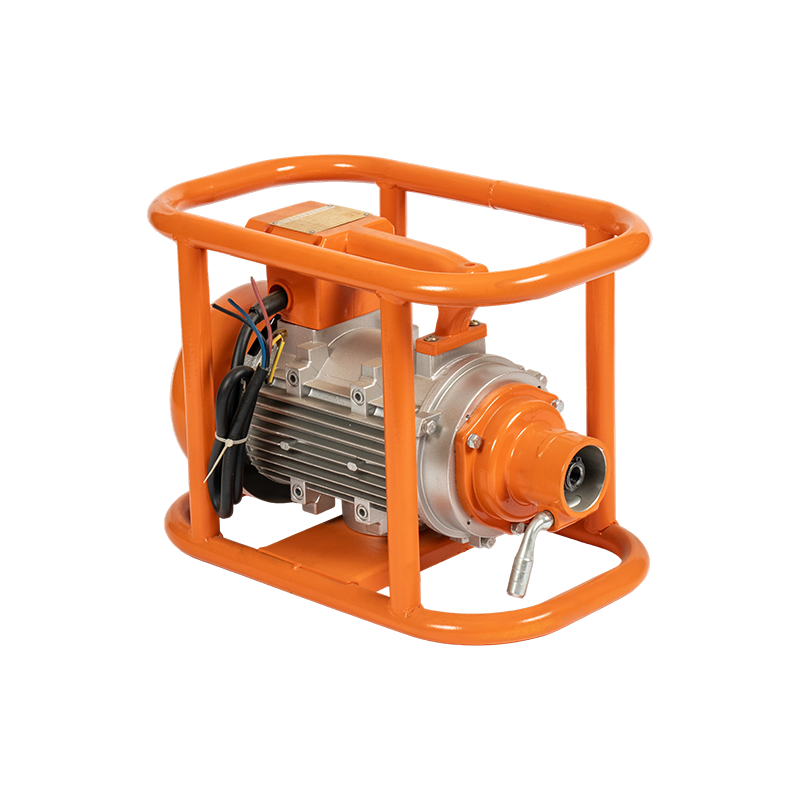

GQ-M03 High-Frequency Internal Concrete Vibrator with Roll Cage

2.We offer 5 global standard coupling types to perfectly match your existing inventory or local market preferences:

MC-Z (Chinese Type)：Standard hexagonal/common fitting.

MZ-P (Japan Pin Type)：Premium dual-pin connection.

MC-B (Japan Ball Type)：Quick-release ball coupling.

MC-D (Dynapac Type)：The most widely used heavy-duty standard in the Americas and Europe.

MC-K (Korea Type)：Spline/specific market connection.

3.Flexible Order Quantities (MOQ-Friendly)
We gladly accept small orders and trial batches, helping you test your local market with minimal financial risk.

Robust Inventory & Fast Shipping
Backed by large inventories, we guarantee stable supply chains and short lead times even during peak seasons.

Full OEM/ODM Support
With complete customized support (OEM/ODM), we can tailor the housing color, brand logos, and packaging to build your local brand identity.

Premium Quality with Low Maintenance
Engineered with heavy-duty components for a long service life, low noise, and high precision, requiring virtually no maintenance on the job site.

Quality First, Client Trusted
We strictly adhere to a "Quality First, Credit First" business philosophy, winning an exceptional reputation in the international market through flawless service and reliable product consistency.

Core Advantages: The GQ-M03 is more than just a vibrator; it is heavy-duty equipment designed for high-intensity, all-weather construction. Its competitive edge stems from the seamless integration of a high-torque, high-frequency motor with robust physical protection. In large-scale infrastructure projects, equipment is frequently exposed to drops, trampling, and mud encrustation; the GQ-M03 features a fully enclosed roll cage that completely isolates the core motor from external impacts, resulting in a failure rate over 60% lower than that of standard suspended models.

Product Features:
Reinforced Steel Roll Cage: Welded from seamless steel tubing with a diameter exceeding 20mm and finished with an impact-resistant electrostatic coating, the cage serves as both a protective shield and a handle that allows for 360-degree gripping and handling.
High-Insulation Motor: Features a built-in Class H high-temperature resistant all-copper coil, capable of withstanding instantaneous temperatures up to 180°C without burnout.
High-Performance Bearings: Utilizes high-precision bearings to ensure minimal radial runout of the motor output shaft during high-frequency vibration, significantly reducing energy loss.

Applications: Suitable for precast beam yards (T-beams, box girders), railway roadbeds, large-scale hydraulic dams, and nuclear power plant foundations. Its high-frequency vibration rapidly liquefies low-slump (stiff/dry) concrete.

Common Issues and Solutions
Issue: Roll cage connections loosen after prolonged use.
Solution: This is caused by metal fatigue resulting from high-frequency resonance; it is recommended to check and tighten bolts weekly and install spring washers.
Issue: Excessive sparking at the carbon brushes.
Solution: Check for the ingress of fine stone dust. Clean carbon deposits from the commutator surface and replace with genuine, high-hardness carbon brushes.

Important Precautions
Strictly prohibit operation without the roll cage installed or when the cage is severely deformed to prevent the motor housing from cracking due to direct impact.
Do not spray water directly into the motor air intake after get off work.
