Precision Hand Socket Tools for Industrial and Automotive Applications
Ningbo Tongque Machinery Manufacturing Co., Ltd., operating under the FLONPRO brand, is a professional Hand socket tools manufacturer with 15 years of experience in power tool production. Based in a 10,000 sq.m. facility near Ningbo and Shanghai ports, we supply a range of socket sets, T-handle wrenches, and deep sockets designed for demanding fastening tasks in automotive repair, machinery assembly, and general maintenance. Our hand socket tools are engineered for high torque transmission, precise fit, and long service life under frequent use.
We offer OEM and ODM services to tailor socket configurations, drive sizes, and packaging to your brand specifications. Each tool undergoes rigorous quality control from raw material inspection to final assembly, ensuring consistent hardness, dimensional accuracy, and surface finish. With an annual export volume of US$5–10 million, we deliver reliable solutions for global distributors, plant engineers, and procurement managers.
Our Hand Socket Tool Range
We produce several socket tool families to cover common drive sizes and application needs. The table below summarizes our current offerings:
| Product Series |
Drive Size |
Key Features |
Typical Application |
| GQ-ZT5011 200mm Cr-V Steel Transform T-Type Deep Socket Set |
1/2" |
Chrome-vanadium steel, deep socket design, T-type handle for increased leverage |
Automotive lug nuts, heavy machinery bolts |

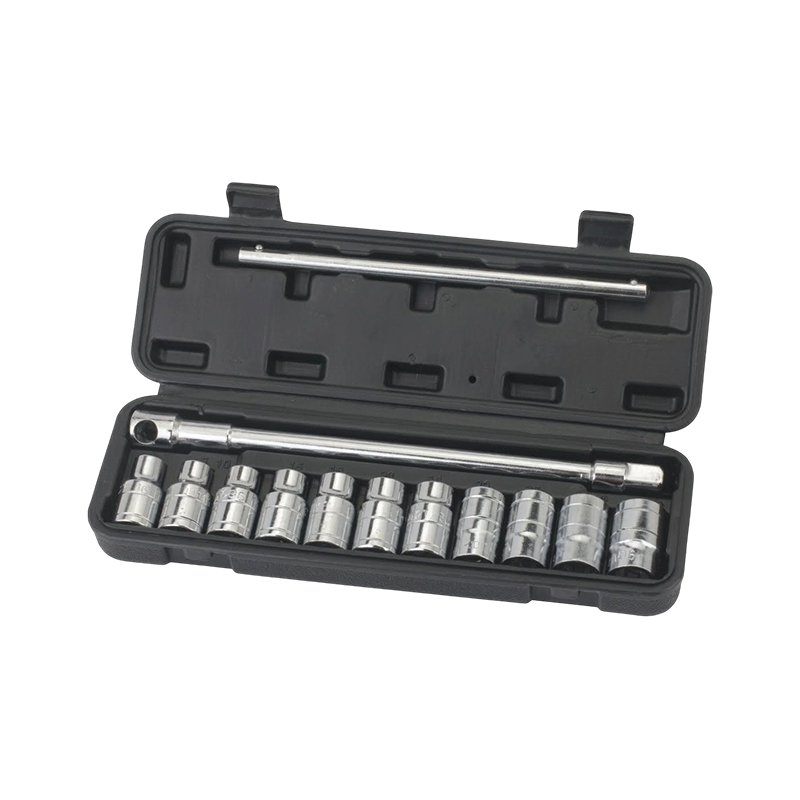

| GQ-ZT5013 13-Piece 1/2" Drive Sliding T-Handle Mirror-Polished Socket Set |
1/2" |
Mirror-polished finish, sliding T-handle for adjustable torque, 13-piece set |
General maintenance, assembly lines |

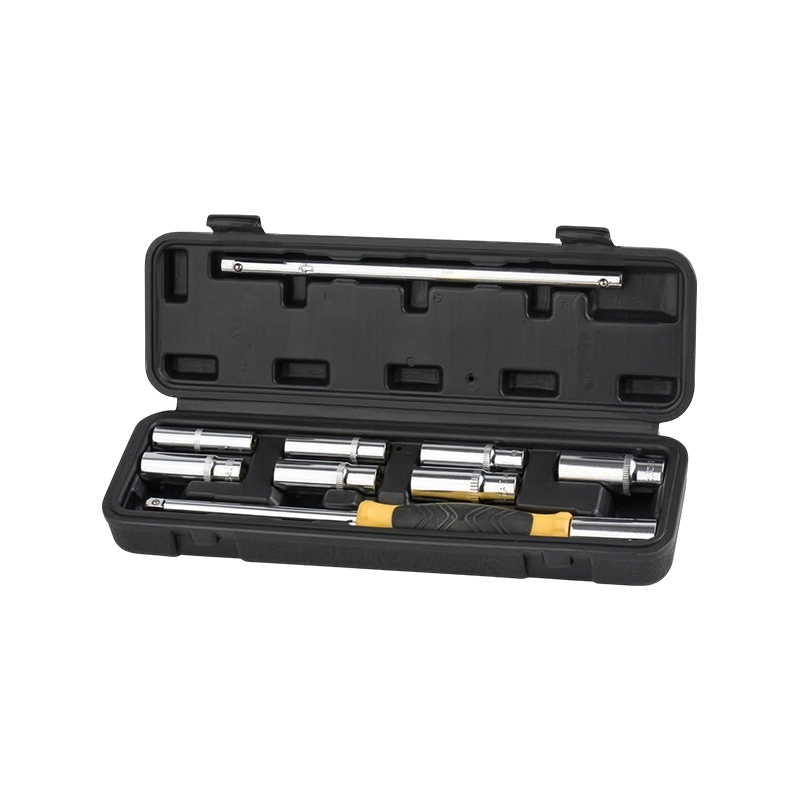

| GQ-ZT5009A 9-Piece 1/4" Drive 250mm Sliding T-Handle Long Socket Set |
1/4" |
Long reach sockets, compact drive size, sliding T-handle for precision work |
Electronics, small engine repair, confined spaces |

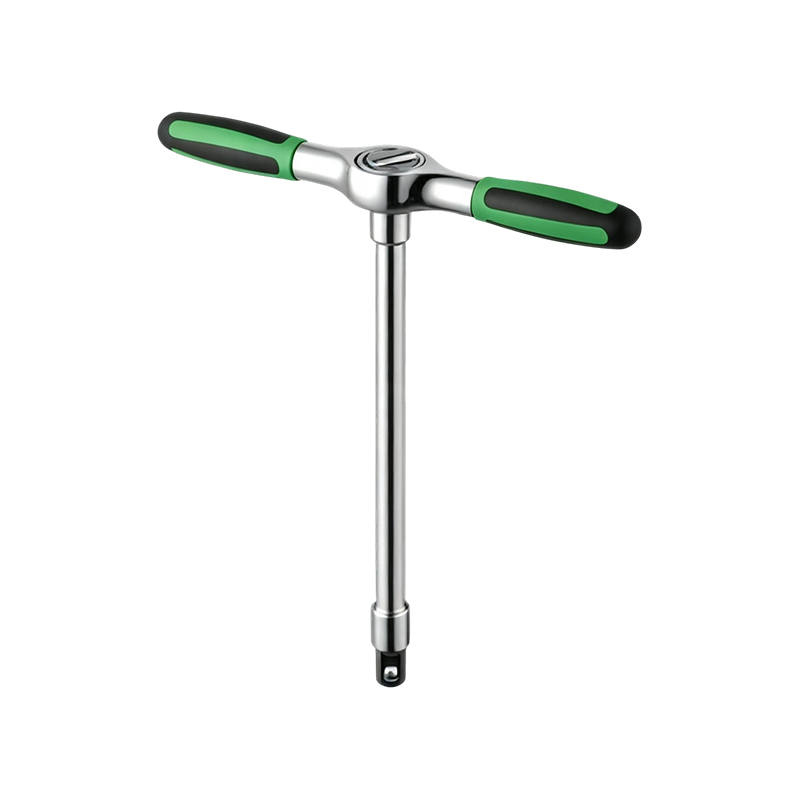

| Mirror Chrome Plated 45 Steel Removable T-Handle Ratchet Socket Wrench |
1/4", 3/8", 1/2" |
45 steel construction, mirror chrome plating, removable T-handle with ratchet mechanism |
Versatile fastening, quick-change applications |
Materials and Manufacturing
Our hand socket tools are primarily forged from chrome-vanadium (Cr-V) steel or 45 carbon steel, selected for their hardness, toughness, and resistance to deformation under high torque. The manufacturing process includes precision forging, heat treatment for core hardness, and surface finishing such as mirror chrome plating or black oxide coating for corrosion resistance. We apply strict hardness testing and dimensional checks to ensure each socket meets ANSI or DIN standards.
For custom orders, we can adjust material grade, socket depth, drive size, and handle design based on your target application and market requirements. Our factory operates automated production lines and manual assembly stations to accommodate both standard and bespoke configurations.
Critical Specifications and Performance
- Drive sizes: 1/4", 3/8", 1/2" – common for most industrial and automotive fasteners.
- Socket depth: Standard and deep lengths available; deep sockets for recessed or protruding bolts.
- Torque capacity: Designed to withstand peak torque without cracking or rounding; exact values depend on drive size and material.
- Surface finish: Mirror chrome plating, satin nickel, or black phosphate for corrosion protection.
- Accuracy: Dimensional tolerances within ±0.1 mm for hex profiles to ensure snug fit and reduce fastener wear.
Application Fit and Selection
Hand socket tools are used across multiple sectors:
- Automotive repair: Removing and installing wheel nuts, engine components, and suspension parts.
- Industrial assembly: Fastening bolts on machinery, conveyors, and structural frames.
- Construction: Tightening anchors, formwork, and heavy equipment.
- DIY and maintenance: General household and workshop tasks.
When selecting a socket set, consider the fastener size, required torque, access constraints, and frequency of use. Our T-handle designs provide better leverage for high-torque applications, while ratchet mechanisms enable faster operation in tight spaces.
Quality Assurance and Testing
We implement end-to-end quality management from incoming raw material inspection to final packaging. Each batch of hand socket tools is tested for:
- Hardness (Rockwell scale) to confirm proper heat treatment.
- Torque performance using calibrated test rigs.
- Dimensional accuracy with go/no-go gauges.
- Surface finish uniformity and corrosion resistance via salt spray tests.
Our quality system supports compliance with international standards such as CE and ANSI. We maintain detailed inspection records for each production lot and can provide certificates upon request.
Configuration and Customization
We offer flexible customization options to match your brand and market needs:
- OEM/ODM: Custom socket sets with your logo, color, and packaging design.
- Material selection: Cr-V steel, 45 steel, or S2 alloy steel for specific torque requirements.
- Drive size and length: Standard 1/4", 3/8", 1/2" or custom drive sizes.
- Set composition: Choose number of pieces, socket sizes, and included accessories (extensions, adapters, ratchets).
- Packaging: Blister packs, plastic cases, or metal boxes for retail or industrial distribution.
Installation, Maintenance, and Service Life
Hand socket tools require no installation; they are ready for immediate use. To maximize service life:
- Use the correct drive size and socket depth for each fastener.
- Apply torque gradually; avoid impact loading unless using impact-rated sockets.
- Clean sockets after use and apply light oil to prevent rust in humid environments.
- Inspect regularly for cracks, wear, or deformation; replace damaged tools immediately.
We provide spare parts for ratchet mechanisms and can supply replacement sockets individually or in sets. Our technical team can advise on maintenance schedules for high-usage environments.
Information We Use to Configure Your Solution
To prepare a precise quotation and configuration, we request the following project details:
- Target application: Automotive, industrial assembly, construction, or general maintenance.
- Fastener specifications: Size range, torque requirements, and access constraints.
- Drive size preference: 1/4", 3/8", 1/2", or custom.
- Quantity and packaging: Estimated annual volume, retail or bulk packaging.
- Customization needs: Logo, color, material, set composition, and any certifications required.
- Target market: Regional standards (ANSI, DIN, ISO) and any specific compliance requirements.
Submit these details via our contact form or email, and we will respond within 12 hours on business days with a tailored proposal.
Frequently Asked Questions
Q: What materials are your hand socket tools made from?
We primarily use chrome-vanadium (Cr-V) steel and 45 carbon steel. Cr-V offers higher toughness and is standard for most socket sets, while 45 steel is used for specific ratchet wrenches. Custom materials like S2 alloy are available on request.
Q: Can I get custom socket sets with my brand logo?
Yes, we offer OEM and ODM services. You can specify drive sizes, socket lengths, set composition, surface finish, and packaging. We will apply your logo via laser engraving or pad printing.
Q: What is the typical lead time for a standard socket set order?
Lead time depends on order quantity and customization level. For standard sets without customization, we typically ship within 15–25 days after order confirmation. Custom orders may require 30–45 days for tooling and production.
Q: Do your hand socket tools meet international quality standards?
Our tools are manufactured to meet ANSI, DIN, and ISO standards. We perform hardness, torque, and dimensional testing on every batch. CE certification is available for applicable products.
Q: How do you ensure consistent quality across large production runs?
We implement in-process inspection at each manufacturing stage—forging, heat treatment, machining, and finishing. Final inspection includes random sampling per AQL standards. Detailed records are kept for traceability.
Q: What shipping options do you offer?
We ship under FOB, CIF, CFR, and EXW terms. Our location near Ningbo and Shanghai ports allows efficient sea freight. We also coordinate air and express shipping for urgent orders. Our logistics team handles all documentation.
