Concrete Vibrator Drive Units manufacturer
Ningbo FLONPRO is an export-oriented Concrete Vibrator Drive Units manufacturer with 15 years of expertise in power tools. Operating a 10,000 sq.m. facility near Ningbo and Shanghai ports, we supply electric vibrator motors and gasoline vibrator engines for construction, infrastructure and precast concrete projects worldwide. Our range covers handheld and frame-mounted drive units from 1.5 kW to 5.5 kW, with multiple coupling standards to match regional poker shafts. We support OEM and ODM configurations, backed by in-house quality control from raw material inspection to final load testing.
Our product range
We offer two child categories under Concrete Vibrator Drive Units, each engineered for specific site conditions and power availability.
Electric Vibrator Motors

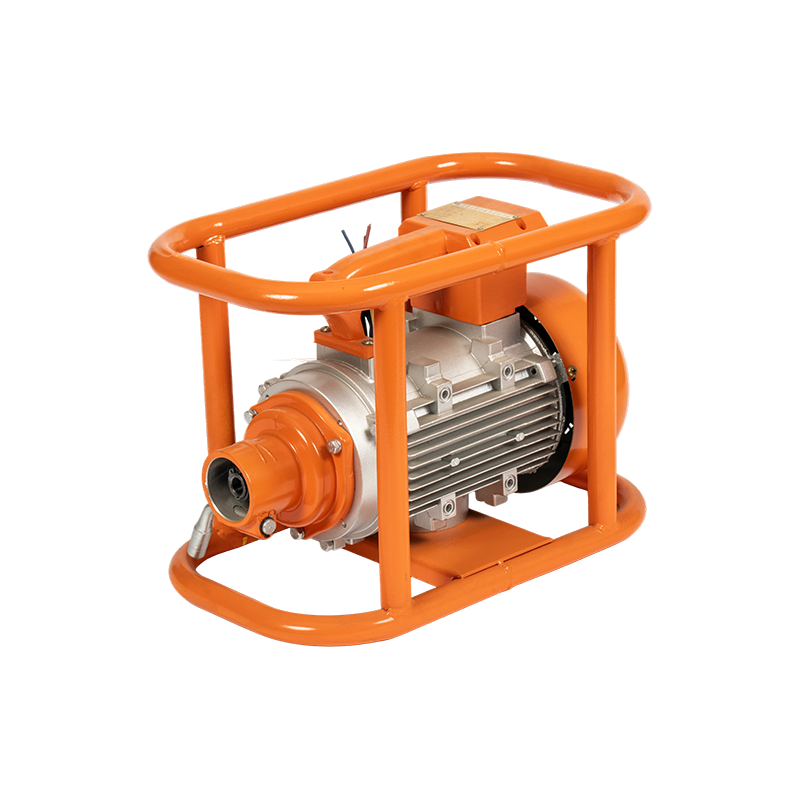

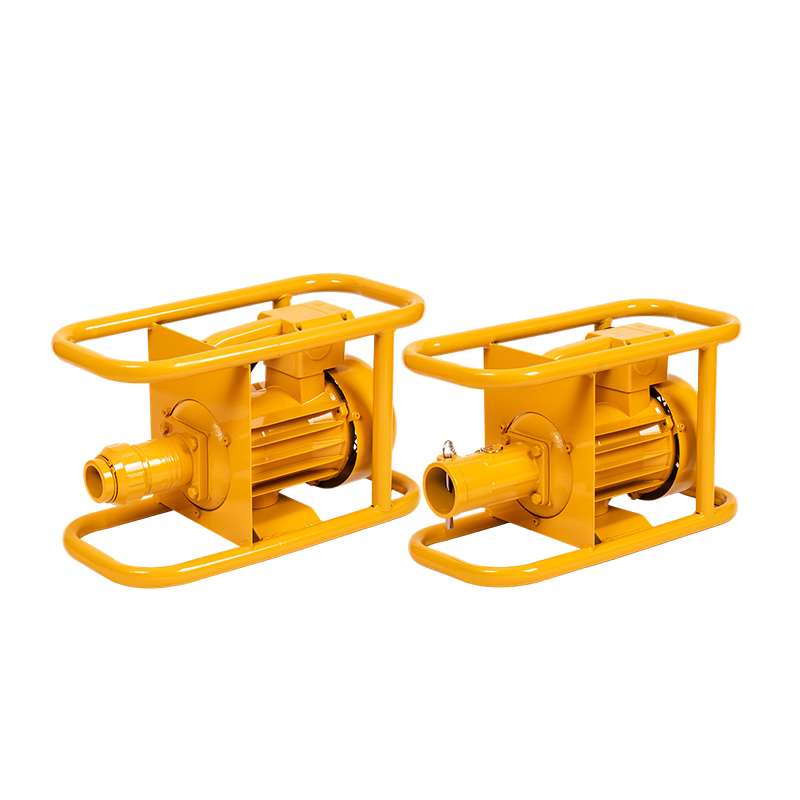

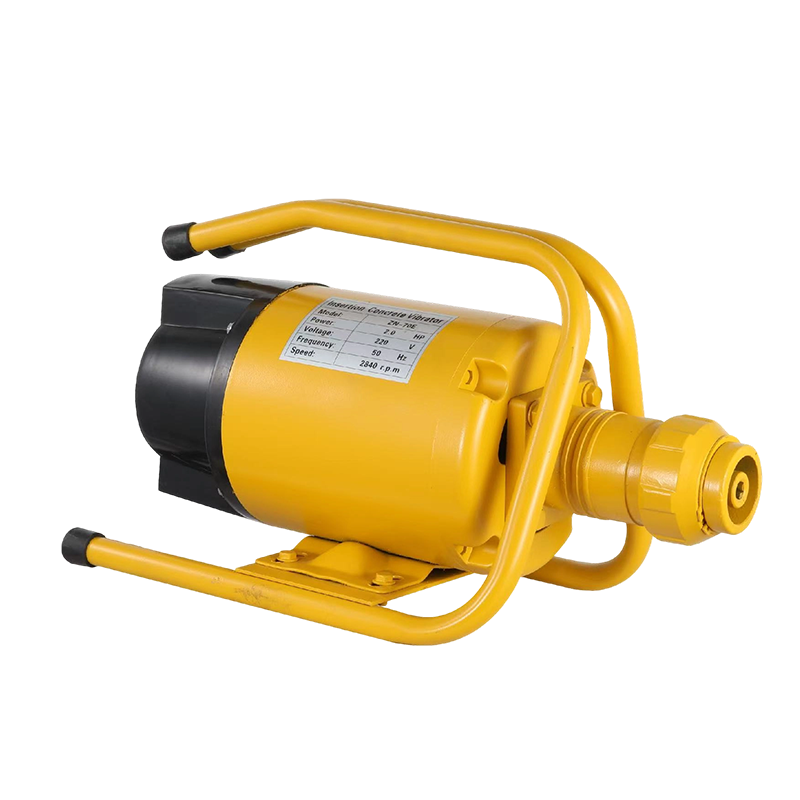

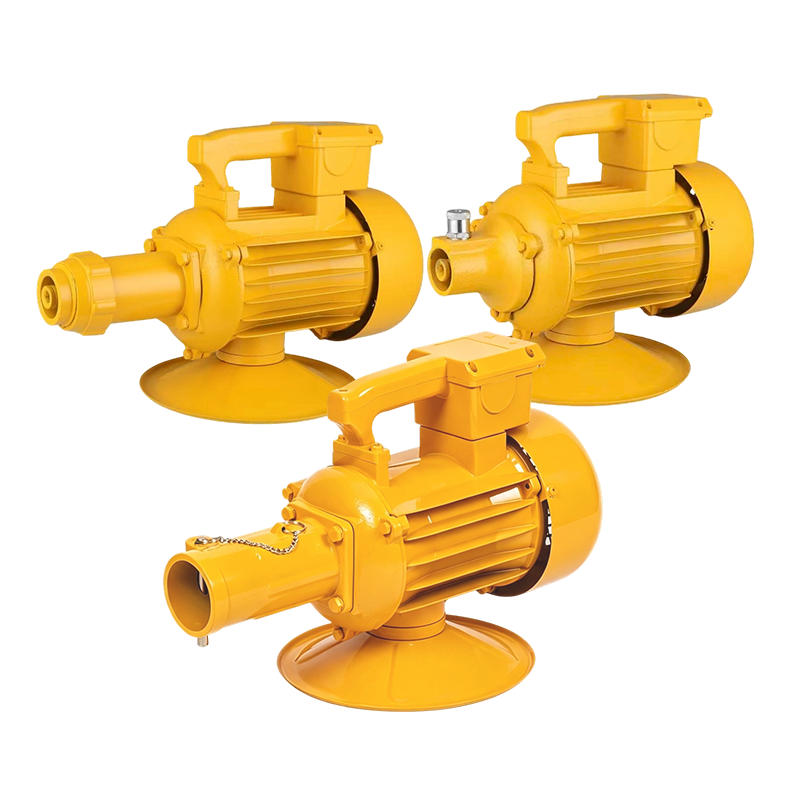

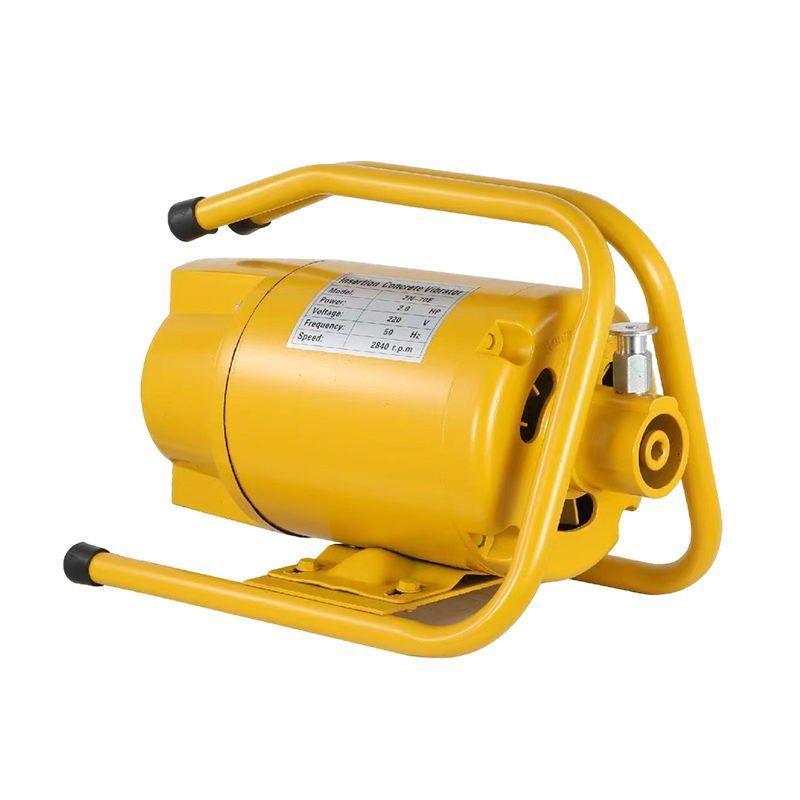

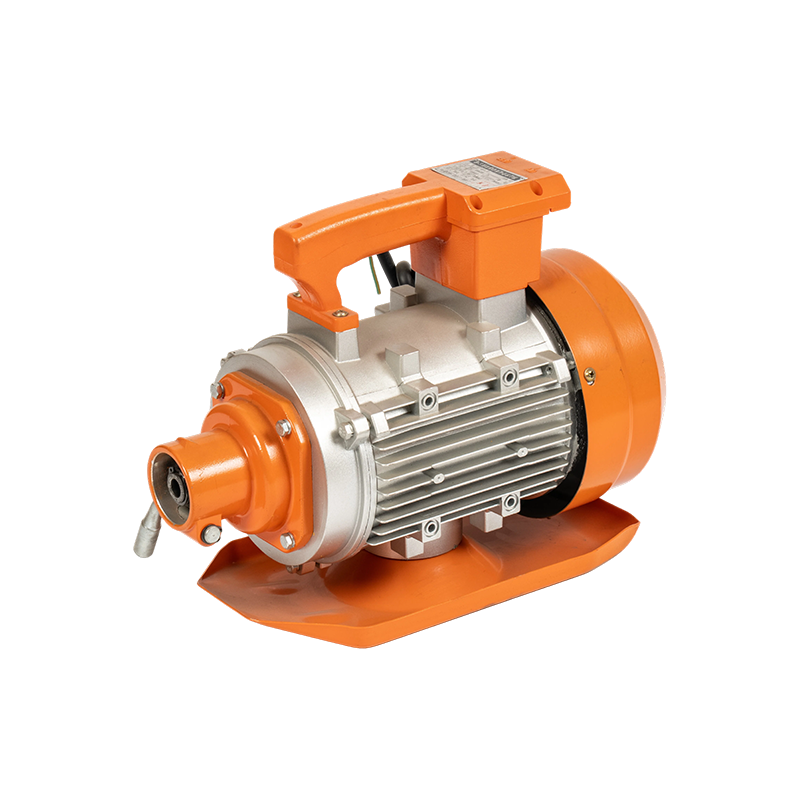

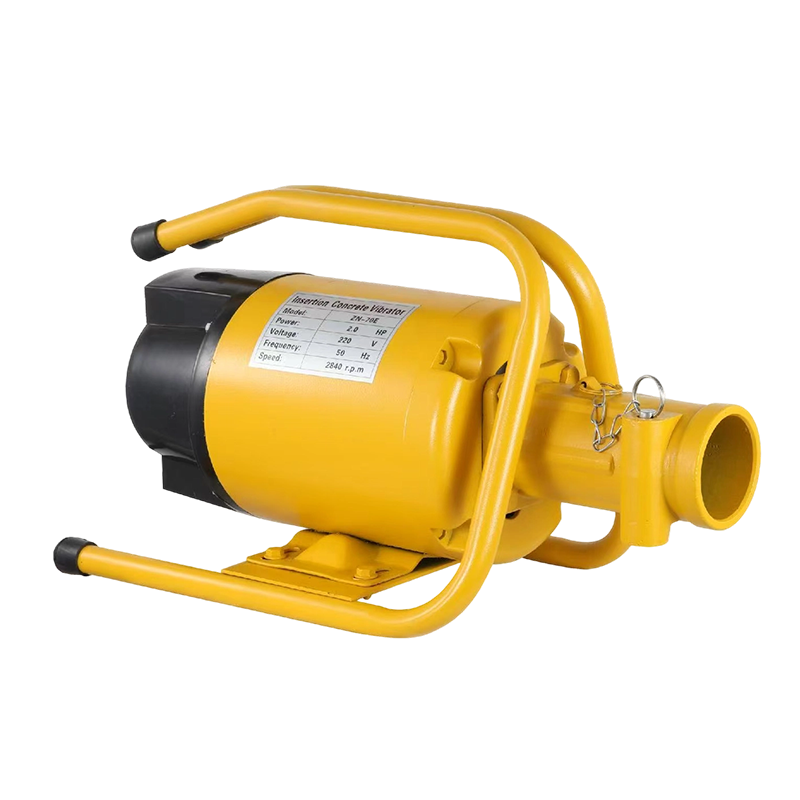

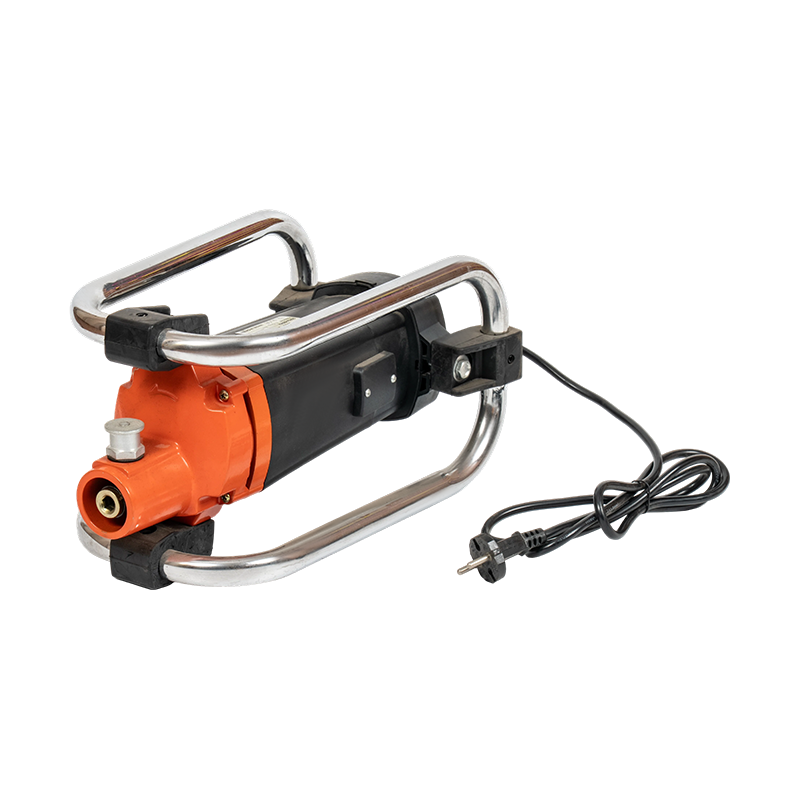

For sites with reliable mains power. Our electric drive units include handheld models with screw thread or quick coupling (Chinese, Japanese, Malaysian types) and high-frequency internal vibrators with roll cage. Rated power from 1.5 kW to 2.2 kW, speeds up to 12,000 RPM. Suitable for continuous operation in precast yards, bridge decks and high-rise slabs.
Gasoline Vibrator Engines
For remote or off-grid construction. Our gasoline and diesel vibrator drive units deliver portable power for large-area concreting, road works and dam projects. Models include frame-mounted engines with centrifugal clutch and flexible shaft coupling. Engine displacement typically 50–200 cc, with fuel tank integrated for extended runtime.
Application fit and material considerations
Concrete vibrator drive units are selected based on the concrete mix design, placement method and required consolidation depth. Our electric motors suit indoor or urban sites where emissions are restricted, while gasoline engines provide autonomy on large pours without generator dependency. The drive unit housing is cast aluminium or steel, with sealed bearings to resist dust and moisture ingress. We match the coupling type—screw thread, Chinese quick coupling, Japanese pin type or Malaysian bayonet—to the poker shaft system used in your region.
Critical specifications and configuration
| Parameter |
Electric range |
Gasoline range |
| Power |
1.5–2.2 kW |
1.5–4.0 kW (engine) |
| Speed (no load) |
4,300–12,000 RPM |
3,600–6,000 RPM |
| Coupling types |
Screw thread, Chinese quick, Japanese, Malaysian |
Flexible shaft, Chinese quick |
| Weight |
8–15 kg |
15–35 kg |
| Protection |
IP54 (motor) |
Weatherproof enclosure |
Capacity, throughput and accuracy
Our electric vibrator motors are rated for continuous duty (S1) at full load, delivering consistent vibration frequency for optimal concrete consolidation. Gasoline engines are designed for intermittent heavy-duty cycles typical of large pours. Vibration frequency accuracy is within ±5% of rated speed under load, ensuring uniform compaction and reduced honeycombing. Throughput depends on poker diameter and concrete slump; we can recommend the appropriate drive unit and poker combination for your target placement rate.
Controls and automation integration
Electric drive units can be supplied with integrated on/off switch or remote control for operator convenience. For automated precast lines, we configure the motor with a compatible starter and speed controller. Gasoline engines feature throttle control and centrifugal clutch for automatic engagement. We do not supply full automation systems but provide the drive unit with standard electrical interface (cable length, plug type) per your specification.
Tooling, auxiliary equipment and installation
Each drive unit is delivered with the coupling adapter for your poker shaft. We also supply concrete vibrator shafts and pokers as separate categories. Installation is straightforward: mount the unit on a stable base or carry handle, connect the flexible shaft, and secure the power cable or fuel line. No special foundation is required for handheld models. For frame-mounted gasoline units, we include vibration-dampening feet.
Operator safety and quality assurance
All drive units undergo dielectric strength test (electric models), ground continuity check and no-load run-in before shipment. Gasoline engines are tested for fuel system integrity and clutch engagement. We implement end-to-end quality management: incoming material inspection, in-process checks and final inspection per international standards. CE compliance is confirmed for electric models. Operators should wear PPE and follow local safety regulations for vibration exposure.
Customization and OEM/ODM support
We provide comprehensive OEM and ODM services tailored to your brand specifications. Customizations include:
- Coupling type and dimensions
- Voltage, frequency and plug configuration (electric)
- Engine displacement and fuel type (gasoline/diesel)
- Color, labeling and packaging
- Accessory kits (carry case, spare parts)
Information we use to configure your solution
To prepare a precise quotation and configuration, we need the following project data:
| Data point |
Why we need it |
| Power source (mains/generator/battery) |
Determines electric vs. gasoline selection |
| Poker shaft coupling type |
Ensures mechanical compatibility |
| Required vibration frequency (RPM) |
Matches motor speed to concrete mix |
| Expected daily pour volume |
Confirms duty cycle and engine capacity |
| Operating environment (indoor/outdoor, dust, moisture) |
Guides protection rating and housing material |
| Target markets and certifications |
Aligns with CE, UL or other regional standards |
Maintenance, spare parts and serviceability
Electric vibrator motors require periodic brush inspection (if brushed type) and bearing lubrication. Gasoline engines need regular oil changes, air filter cleaning and spark plug replacement. We supply spare parts kits including carbon brushes, bearings, clutch assemblies and fuel filters. Each unit comes with a maintenance manual. Our technical team provides remote support for troubleshooting.
Documentation and training
We provide operation and maintenance manual, wiring diagram (electric models), parts list and CE declaration of conformity. Training documentation is available in English; we can arrange video walkthroughs for first-time users.
Packaging and delivery scope
Standard packaging: individual carton with foam inserts, then master carton or plywood crate for sea freight. Each unit is secured with the coupling adapter and basic tool kit. We ship FOB Ningbo or Shanghai, with flexible terms (FOB, CIF, CFR, EXW). Our logistics team coordinates with your forwarder or arranges reliable carriers.
Frequently asked questions
Q: Can I use your electric vibrator motor with my existing poker shafts?
A: Yes, if you provide the coupling type and dimensions. We offer screw thread, Chinese quick coupling, Japanese pin type and Malaysian bayonet. Send a photo or drawing for verification.
Q: What is the lead time for a custom OEM order?
A: Typical lead time is 30–45 days after sample approval, depending on quantity and customization complexity. We can expedite for repeat orders.
Q: Do you provide CE certification for electric drive units?
A: Yes, our electric vibrator motors are CE compliant. We include the declaration of conformity with each shipment.
Q: What is the warranty period?
A: We offer a 12-month warranty from the date of shipment against manufacturing defects. Extended warranty is available upon request.
Q: Can I get a sample unit before bulk order?
A: Yes, sample orders are welcome. We can produce a pre-production sample for your evaluation, with cost deducted from the bulk order.
Q: How do I select between electric and gasoline drive unit?
A: Choose electric if you have reliable mains power and need lower operating cost. Choose gasoline for remote sites, large pours or where power supply is unavailable. We can advise based on your project location and pour schedule.
